奎芯科技
MSquare Technology
奎芯科技（MSquare Technology）于 2021 年成立，是一家专业的集成电路IP和Chiplet产品供应商。公司专注于解决智慧经济时代下芯片互联和应用垂直整合的挑战。目前在上海，台北，东京，圣何塞，悉尼等地拥有办公室，拥有一支数百名员工的团队，其中研发人员占比高达80%。奎芯科技致力于构建一个AI与Chiplet的开放生态服务平台，旨在为集成芯片和芯粒产业的创新和发展提供全方位的支持。
奎芯科技旨在打造国际芯粒品牌，成就互联IP龙头。凭借丰富的IP产品组合和先进的技术实力，奎芯科技正积极构建业界领先的IP基础设施平台，引领AI与Chiplet技术创新。奎芯科技的IP已经成功在一些知名厂商的工艺节点得到验证并实现量产，目前已成功开发5nm到180nm、覆盖五大晶圆厂的400多个不同制程节点的IP产品。研发团队已陆续推出 HBM、LPDDR、ONFI、UCIe、eDP、PCIe、USB等互联接口IP，以及以M2LINK为代表的Chiplet产品解决方案，打造开放生态的服务平台，持续赋能数字化转型。
MSquare Technology, incorporated in 2021, is a leading provider of integrated circuit IPs and Chiplets, dedicated to addressing the challenges of chip interconnectivity and vertical integration in the smart economy era.
Our portfolio of high-speed interface IPs, including HBM, LPDDR, ONFI, UCIe, eDP, PCIe, USB, as well as Chiplet solutions represented by M2LINK, are tailored for applications in AI, Data Centers, Automotive Electronics, the IoT, and Consumer Electronics.
MSquare strives to foster an open ecosystem service platform for AI and Chiplets, providing comprehensive support for innovation and development within the IC and Chiplet industry.
产品展示
-

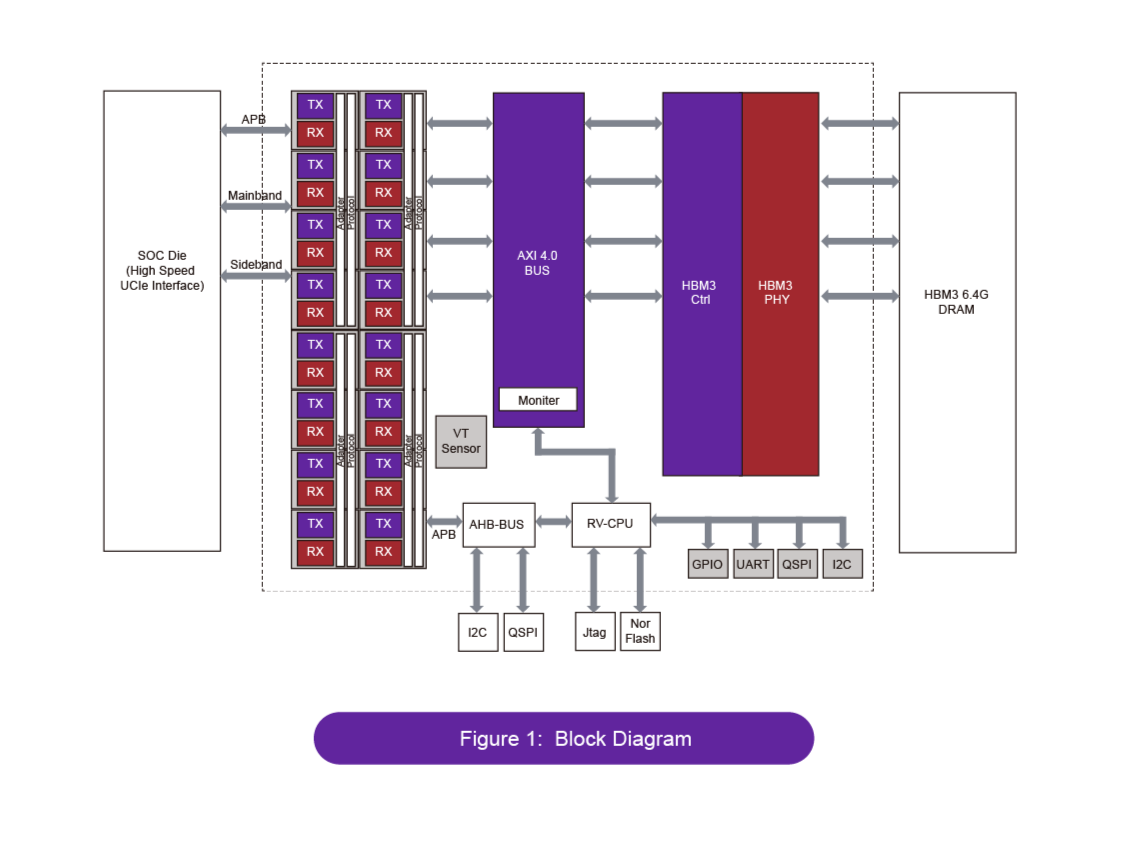

ML100 IO Die
• Integrates 16 complete UCIe modules, following the standard UCIe 1.1 standard
• Integrates one complete HBM3 IP, including the controller and PHY, following the HBM3 JESD238 standard
• Supports interconnectivity with the SoC via the AMBA AXI4.0 standard -

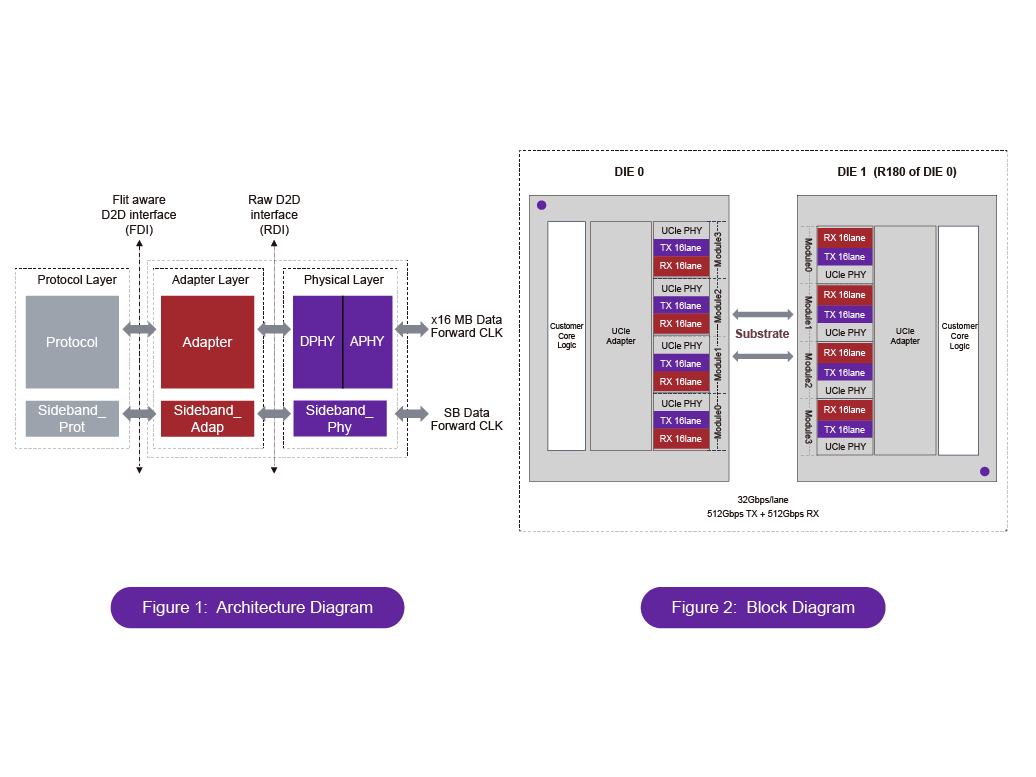

D2D(UCIe) IP
• Compatible with UCIe v1.1 specification
• Features single-ended, source-synchronous, and DDR I/O signaling
• Supports 32-bit (16-bits TX + 16-bit RX) data bus per module for standard packages
• Offers a high clock frequency up to 16GHz
• Provides data transfer rate up to 32Gbps per lane -

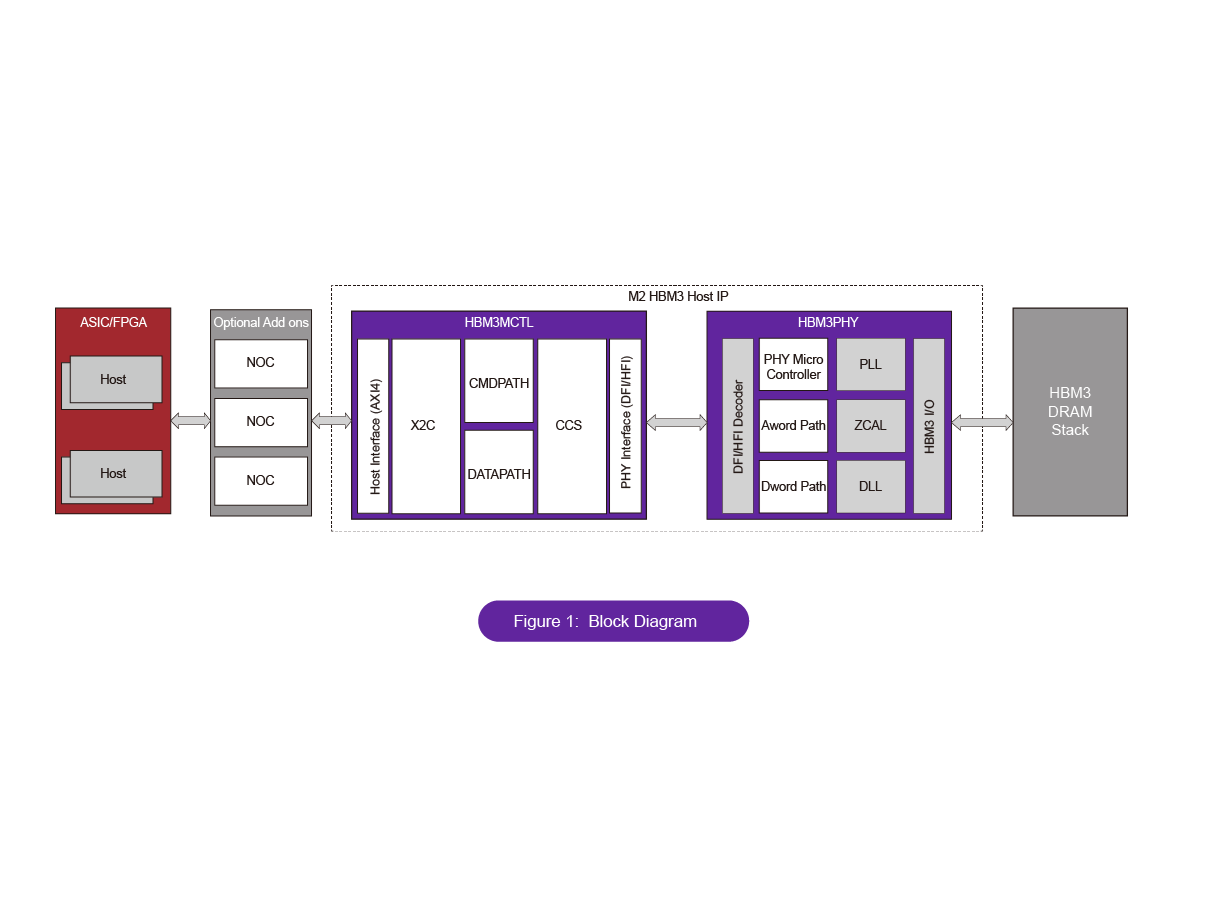

HBM3 IP
• Designed for high memory throughput and low latency applications
• Consists PHY and Memory Controller
• Optimized for 12nm process
• Supports speed up to 6.4Gbps/pin
• Features integrated PLL and IO
• Flexible configurations available: (PHY only) or (PHY + Controller) or (Controller only)
